A retail facility lifestyles or dies by uptime. Doors require to open, trucks require to dump, and clients anticipate amount floors as well as functioning stores, certainly not caution strip around a fractured piece. This instance fixates a 120,000 straight foot retail complex installed the overdue 1990s on a site that looked really good on paper, yet carried a subsurface tale no geotechnical designer likes to inform twice. Over fifteen years the venture floated out of degree, opening spaces in front junctions, tiing store front doors, as well as telegraphing a crack network through the internal piece. The proprietor had actually covered as well as wished years, consisting of episodic epoxy shots as well as cosmetic piece repairs, but the motion maintained coming back. When the anchors of 3 resident areas headed out of sensitivity, the facility's resource supervisor took our company in with one direction: stabilize it without shutting the place down.
What adheres to is an inside examine the examination, style, as well as completion of deep foundation repair making use of helical piles as well as helical tieback anchors on an active office internet site. I am going to cover what operated, what our experts altered when we opened up the ground, as well as why helical bodies punched other choices for this certain job. I will definitely likewise mention where micropiles as well as resistance heaps still make good sense, due to the fact that there is actually no singular hammer that matches every nail.
The signs that caused the call

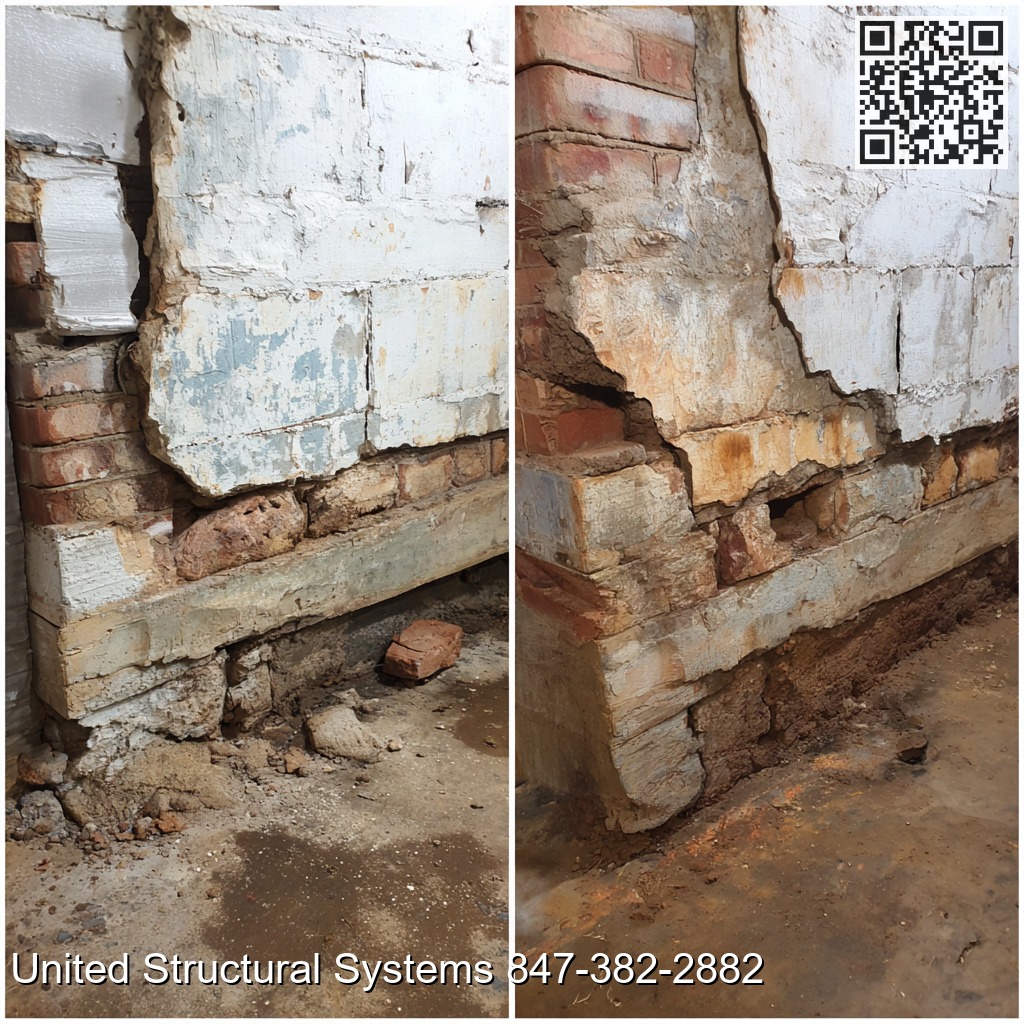

You may often tell the difference between a problem split and also structural hardship by just how it acts over times. In this particular center, junctions at the block laminate consistently widened outboard and finalized somewhat inboard, a sign the boundary was rotating. Pair of residents disclosed that new plaster gap repairs will re-emerge within months, regularly near the frontal glazing line. The centers team possessed ground down door thresholds more than as soon as to maintain doors moving.
We functioned a flooring altitude questionnaire on a 10 feet grid throughout off hours. The worst edge was actually down 1.75 ins relative to a main internal objective. The front facade along the south elevation had a steady descending incline of about 0.6 per-cent toward the parking area. Outside, the pathway had actually developed a "smile" where downspouts released, a hint our team often observe when roof covering overflow shifts toward the slab edge. The side that confronted an apprehension container presented the deepest movement.
Early on, our team presumed the initial spread grounds were resting to some extent on medium heavy fill over compressible native clay-based, with occasional lens of organics near the old drain swale. That is a risky club sandwich for a shallow structure, specifically when landscaping as well as irrigation raise the dampness web content at the sides. The utility trouble was clear: the boundary was actually losing help. The concern ended up being just how deep-seated our experts had to go to locate proficient bearing, and just how to perform it while the outlets remained open.
Site inspection that mattered
Paperwork assists, however the borings coming from the 1990s left our company with bigger assortments than our company were comfortable along with. Our company took 4 new borings and also 2 conoid infiltration examinations along the south as well as west facades where motion was greatest. The ground account lined up with our uncertainty: regarding 6 to 9 feet of regulated filler of mixed structure, underlain through 8 to 15 feet of smooth to channel plastic clay. Below twenty to 24 feets, the CPT suggestion resistance leapt, leading to a thick silty sand layer along with occasional gravel joints. Groundwater was actually in season around 7 to 9 feet.
One concern stood out: the existing ground bottoms were simply at 4 feets below grade along the border, as well as the slab bore straight on quality. That offered our company little embedment as well as poor confinement in the area very most influenced through periodic dampness variation.
With those data aspects, our team constructed an initial target that any kind of deep structure service needed to have to develop capability listed below 25 feets, ideally locking in to the dense coating near 30 feets. That prepared the stage for making a decision between helical piles, protection heaps, or micropiles.
Choosing helical piles over other profound groundwork options
We looked at 3 family members of answers and also analyzed them versus the website conditions and the operational border that the retail facility needed to always keep trading.

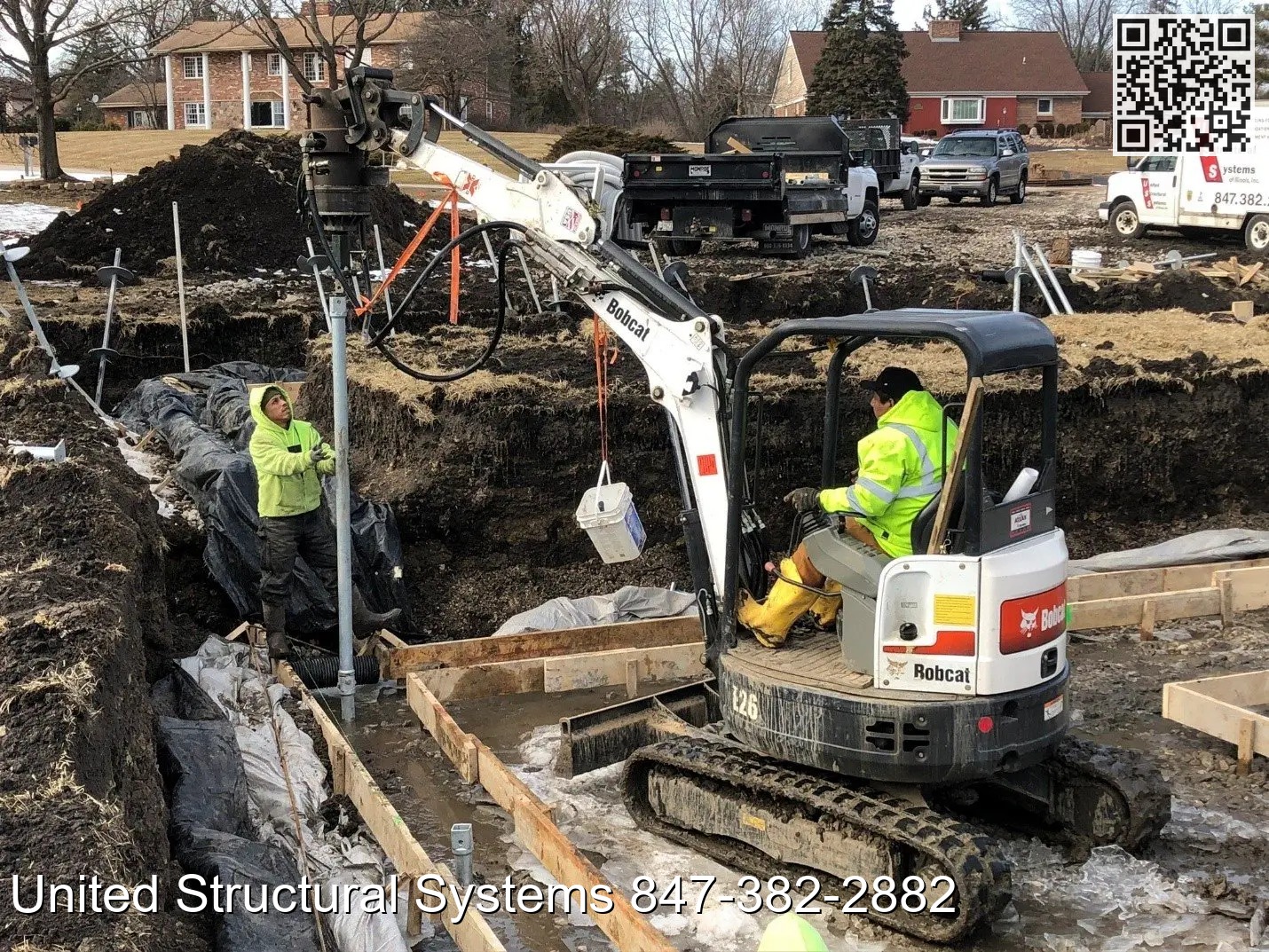

- Commercial helical pile installment supplies a silent, low-vibration, torque-controlled method of putting up deep aspects with instant payload ability. That matters when lessees function inches out of the work. Helical piles grow in mixed dirts and also may be evolved quickly with tiny devices. For this website, where our experts needed to have to weave around stores, truck attires, as well as energy passages, the small footprint mattered. Commercial resistance pile installation, at times referred to as guts heaps or even hydraulically steered steel heaps, can easily likewise be actually put in with compact tools. They make use of the property as reaction to push sections to rejection. They radiate when there is actually a crystal clear, stiffer stratum to crash and when accessibility makes it possible for a solid reaction framework. On this venture, the changeable filler and also clay sandwich generated uneven driving shapes. The store framing was actually not made to be a reputable response resource without temporary supporting, which will have hindered mundane traffic. Commercial micro pile setup (micropiles) delivers high axial capability by means of grout-bonded steel in pierced gaps, often with really tiny diameters. Micropiles deal with cobbles and rocks that can easily cease helicals, and also they are trustworthy in precarious metropolitan web sites where sound and also vibration limits are strict. However, micropile installation needs boring rigs, ruin administration, grout blending as well as positioning, and also remedy time before tons transfer. The hosting footprint as well as moist trade component were actually certainly not suitable for an energetic retail frontage.
Given the requirement for rate, very little vibration, quick load capacity, and also sleek staging, commercial helical pile installation became our key path. Our company always kept micropiles as a backup if our company struck refusal over the intended coating or faced unexpected obstacles that helicals could possibly not cut through. Protection heaps fell out of the operating the moment our team verified the reaction and also drive variability issues.
Design technique: ability, durability, as well as action targets
The owner's brief was easy yet demanding: cease the resolution, recoup as a lot altitude as prudent without detrimental finishes, and also prevent a regular. In practice that converted to 3 amounts our company can gauge: web permitted lots per heap, lift limitations throughout removal, and long-term deflection under company loads.
We developed helical piles to operate in squeezing under the perimeter footings, along with helical tieback anchors for sidewise stability at the loading dock retaining wall that had actually begun to spin. The selected helical pile included a 2.875 in shot bar with a tri-helix top section, 10, 12, and also 14 in helices spaced to reduce communication. We targeted a minimal twist relationship relating 40 to fifty kips permitted per heap, based on regional torque-to-capacity ratios verified by bunch examinations on similar soils. Stack sizes were expected in the 28 to 36 feet assortment to fully seating right into the heavy sand layer.
Steel was hot-dipped driven for oxidation security, which incorporates expense yet pays off where seasonal moisture as well as defrosting salts appear. Our team created modifiable brand-new construction brackets changed for retrofit to birth under the escalate ground sides after local underpinning pockets were cut. The bracketry made it possible for fine upright command as well as promoted staged jacking.
For the filling dock wall, our experts defined commercial helical tieback anchor installation with 1.75 inch square bar anchors and 10 and 12 inch helix plates. Intended connect regions were 22 to 28 feet back coming from the wall structure face, listed below the active region, with workload around 25 kips every tieback. Given the lumpy layer at deepness, the helical anchors provided expected installment twist and immediate lock-off.
We set an airlift target of 0.5 to 1.0 in at one of the most damaged storefronts along with stringent surveillance. Gyp dividings and store frameworks may endure moderate modifications, but much older glazing and also fragile ceramic tile are actually unrelenting. Our company readied the owner that some aesthetic fixings will still be actually needed, and also in 2 renter areas our team discussed momentary store front deglazing to permit measured hoisting without glass stress.
Phasing the work around operations
The finest design falls short if you can certainly not carry out without stopping commerce. Our company damaged the venture right into six sectors to make sure that no more than one main renter bay per portion would certainly be actually affected each time. Job hrs ran from 10 p.m. to 8 a.m. for interior support and from 5 a.m. to 2 p.m. for outdoor heap installment near social locations, with brief barriers and also scouts controlling mundane flows during the course of opening up hours.
Utilities governed the choreography. The primary fire line ran within 6 feets southern facade. We pothole-verified its own site at each organized stack placement, after that moved two stacks by 18 inches as well as adjusted brace space to preserve lots course symmetry. Our experts additionally coordinated along with the gardener to eliminate shrubs at fifteen areas, which spared hrs duke it outing root balls in the course of evening shifts.
Noise was actually modest considering that helical setup is a torque method rather than percussion, but our experts still utilized rubber monitors and also put down floor coverings to shield paving and lessen resonance. The tools roster featured a compact bulldozer with a high-torque ride scalp, a skid guide for material managing, and also transportable electrical generators for lighting.
Installation: things you only know when you perform it
Paper styles suppose sameness that ground certainly never respects. On our initial portion we hit 2 unpleasant surprises and created 3 changes that boosted the rest of the project.
First, the torque increases our company documented at 18 to 20 feet were certainly not the dense layer our team found. They arised from a gravelly switch with occasional cobbles. The risk along with helicals is slowing or even inaccurate refusal if a solitary helix sits on a cobble. Our team progressed by means of by oscillating and also reaming a little, then including a top along with a various helix spacing for pair of piles that continued stalling. That flexibility is actually one main reason I just like mobile helical systems for business base stabilization.
Second, we located a left power channel right where brace pockets needed to be reduced. Scanning missed it because of obstruction from close-by metallic shelving. Our team rerouted bracket positions, then incorporated one additional overdo a brief footing section to keep eccentricity within limitations. Field judgment like that maintains the repair sincere. If you relocate help, you adjust counts.
Third, response and lift sequencing issue. You carry out certainly not hoist a 50 shoe run of shop in one go. Our company set up all the piles in a sector, set brackets, preloaded each by regarding 5 kips to seat parts, then lifted in small increases in a leapfrog pattern. Dial indicators enjoyed footing action at 4 points per section, and laser device amounts tracked piece and also store frames. Our experts ceased lifting instantly if a crack opened or a frame creaked more than endurance. In two locations our team attained simply 0.4 inch of recovery rather than a total in given that the appearances began to complain. Proprietors appreciate a professional who recognizes when to stop.
When mounting the helical tieback anchors at the packing dock wall surface, the initial support pressed through a sand lense as well as rejected to construct the torque our experts really wanted. Our company stretched the support size through one area to get to the desired thick layer, at that point reconsidered positioning. All supports were actually tested to 150 percent of design tons as well as locked off, and also the wall surface action stabilized within machinery sound after pair of weeks.
Addressing foundation splits and also indoor distress
Helical heaps and also tieback anchors quit the trigger, however tenants still see the effects in their areas. Our experts partnered with a specialized workers for foundation crack repair merely after the construct was actually stabilized and raise goals reached. Epoxy shot makes good sense on structural splits in footings and also level shafts when you recognize motion has ceased. For slab-on-grade cracks that are non-structural, routing as well as closing with an adaptable polyurea is actually a much better bet. Rigid epoxies in a living retail atmosphere commonly telegraph by means of ceramic tile or even vinyl fabric plank eventually, and the design gains with thermal cycles.
We collaborated the shot schedule with nighttime operating home windows. The staff stitched a couple of stubborn piece gaps with carbon dioxide fiber bands around column manners to stop re-opening. Along the front, we recast brick management joints where the best voids had formed, and our team re-caulked all boundary junctions with a high-performance sealer. The lessees discovered the difference when thresholds smoothed and also doors ceased rubbing.
Performance proof as well as monitoring
There is an inclination in our sector to declare success the day the staff demobilizes. I do certainly not count on any kind of deep foundation repair without a surveillance program. The manager accepted to an one-year review with quarterly elevation checks at the very same framework aspects as the guideline. Our company additionally placed crack displays on 2 internal wall surfaces that had resumed before and an inclinometer on the packing dock wall.
After the 1st quarter, the max rebound loss was less than 1/16 inch at some section, well within tolerance as well as most likely linked to seasonal humidity improvement. The dock wall surface presented no measurable rotation after the helical tieback anchors were actually locked off. Over twelve months, the retail center stayed put.
Cost, routine, and also what our company learned
We mounted 186 helical piles at the border and also 14 helical tieback anchors at the dock wall. Average stack depth was actually 32 feets. Field creation worked out at 8 to 12 heaps every shift relying on gain access to and wallet cutting. Overall active construction reached 9 weeks along with the segmented technique. Our team always kept all tenants available, though pair of closed at an early stage 2 nights to allow controlled jacking as well as store adjustments.
Owner price is actually always vulnerable, yet transparency assists. Helical piles are not the most cost effective line thing in a spreadsheet when reviewed to another round of cosmetic repairs. They are, having said that, cost-effective when you amortize them across the stayed clear of disturbances, the prevention of further slab and facade repair work, and also the value of occupant retention. On a venture this dimension, our deep-seated groundwork range was roughly 60 to 70 per-cent of overall repair service cost, along with the harmony in cement demonstration and patching, bracket wallet framework, crack repair work, and finish restoration.
We additionally saved time and also risk by certainly not carrying boring spoils and grout, which a micropile strategy would certainly possess called for. That mentioned, if the web site had actually been actually filled with large rocks or even if the dense coating had not been actually obtainable with coils, micropiles would have used an extra trustworthy course. Commercial micro pile installation polishes in erratic geology. Protection stacks will have done work in a circumstance along with a better response frame and a specified refusal stratum closer to quality. The correct body is actually the one that harmonizes soil truths, capacity, get access to, as well as operations.
When to consider options: resistance heaps and also micropiles
Helical heaps fit this retail job, but our company keep various other tools ready. Resistance pile units are actually appealing when a property's framework can properly supply a response and also you expect a very clear end-bearing condition at superficial depths. They may be quicker in tiny volumes and do certainly not require torque connection. The give-and-take is less knowledge right into soil coatings as you go and possible variability in travel sizes that complicates planning.
Micropiles gain their inhibit precarious midtown internet sites, under heavy pillar tons, or even where you must penetrate debris loads and also blockages that would destroy helical tops. They supply higher compressive and also tensile capacity as well as work in both compression and uplift throughout a wide variety of soils. The downside is the coordinations of exploration, grout, casing when needed, as well as cure opportunity, plus the requirement of meticulous quality assurance to make certain connection length efficiency. On real-time retail, that extra level of damp professions may lean the equation.
If an internet site asks for retaining wall surface correction alongside electricals or even where soils are loose sands near level, commercial helical tieback anchor installation provides speed along with prompt lock-off as well as very little mess. In clayey soils, tiebacks require careful assessment of creep as well as lasting performance, and also our experts sometimes indicate numerous shorter helix ready to spread lots as well as limit creep.
Practical details for owners and also resource managers
- Watch water. A lot of base complications on retail centers begin with watering versus the exterior, downspouts discharging at quality, or understated improvements in internet site water drainage after a resurfacing job. Redirecting water early conserves cash later. Measure, carry out not suspect. A half day along with a level and a strategy will inform you where the structure is actually relocating and how fast. Repeating that questionnaire three to six months eventually will present whether the problem is actually active. Stabilize to begin with, beautify second. Foundation crack repair on an active design that remains to move is good amount of money after bad. Deep foundation repair is about clearing away the reason. Cosmetics follow. Prepare occupants. The most effective technological plan can neglect in the court of public opinion if occupants are startled by noise, obstructed doors, or even brief store deglazing. Portion the phasing, hrs, and goals. Occupants are going to help you do well if they really feel respected. Build in tracking. Regardless of whether the fixing is actually audio, assessing for a year gives confidence and records outliers. It also produces a report that assists potential transactions or even refinancing.
Technical appendix: how we validated capacity
We conducted two pre-production squeezing lots examinations on propitiatory helical Micro Pile Installation piles installed near the worst resolution zones. Examination piles reached 34 and 31 feet respectively, seated in the dense level. Making use of a center-hole jack and reaction structure bearing on short-term supports, we filled the turn in increments to 200 percent of design. Each examinations showed elastic activity within expected assortments and also no indication of coil bearing failure. Discharging curves matched properly along with empirical twist connections. For the tieback system, we proof-tested every support to 150 per-cent of workload as well as stored the lots for 10 minutes to see creep, which remained below one tenth of an inch.
These tests offered our company self-confidence in the torque-to-capacity ratio our company embraced and made it possible for a reasonable reduction in the variable of safety since we possessed site-specific information. In commercial foundation repair, proof beats idea, and a few well-executed tons examinations can hone the whole design.
Reflections on deep foundation repair as danger management
The press sometimes coatings deep foundation repair as a remarkable saving, yet the reality is steadier. It is risk monitoring in steel as well as torque. The selection in between a helical pile, resistance pile, or micro pile is a functionality of soil, lots, get access to, and also functional restraints. In this retail facility, helical piles as well as helical anchors matched the soil profile as well as the necessity to function gently and safely amongst active storefronts. They provided prompt, verifiable capability, permitted evaluated recuperation of altitudes, and maintained a filling dock wall structure that had actually ended up being a hassle for deliveries.
The deeper training is to regard water, to determine on a regular basis, and also to function prior to the hardship migrates coming from looks to construct. A qualified service provider will present commercial foundation stabilization choices, not a single prescribed, as well as will definitely explain the pros, drawbacks, and expenses in plain language. When the crew takes advantage of that approach, the repair work carries out much more than quit a gap. It returns confidence for owners as well as tenants, which is the actual money in retail.
